TypeScript Refactor of a 50,000-Star JavaScript PDF Library: A 100-Day Journey
TypeScript Refactor of a 50,000-Star JavaScript PDF Library: A 100-Day Journey
Displaying PDFs on the web is a common task, but existing libraries often fall short when integrating with backend systems. This post details a 100-day project refactoring a popular JavaScript PDF library (pdf.js) with TypeScript to enhance its developer experience and address common integration challenges.
Challenges of Using pdf.js in Application Systems
Many developers face issues when integrating pdf.js into application systems, including:
- Difficult backend interaction
- Limited programmatic control over PDF reader functions
- Complex, hard-to-maintain source code
- Insufficient documentation
Project Goals and Approach
This project aimed to create an advanced version of pdf.js, focusing on two key goals: strengthening the API and documentation for seamless integration, and developing missing or imperfect features (such as richer annotation systems and PDF permission management).
Initial attempts at minor improvements proved ineffective due to pdf.js's large codebase (~100,000 lines of code). A major refactor using TypeScript, pnpm, vite, and a monorepo structure was adopted to address the challenges.
Refactoring with TypeScript, pnpm, and Vite
The refactoring involved a complete overhaul of the codebase, shifting to TypeScript for improved type safety and maintainability. The build process was modernized using pnpm and Vite, and the project structure was reorganized as a monorepo for better modularity and collaboration.

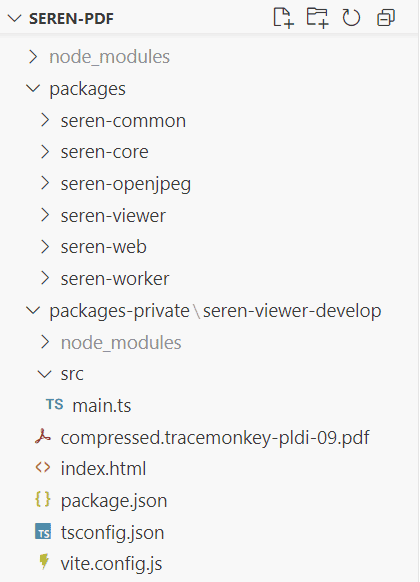

The image below illustrates the new monorepo structure:
Illustrative Example: Simple PDF Viewer Integration
The refactored library provides a clean API for developers to integrate a PDF viewer into their applications. Here's a basic example demonstrating how to initialize, open, and control a PDF reader:
const viewer = WebSerenViewer.init('app', { viewerScale: 0.7 });
viewer.open({
url: 'compressed.tracemonkey-pldi-09.pdf',
verbosity: VerbosityLevel.WARNINGS
}).then(() => {
const controller = viewer.getViewController();
bindEvents(controller);
})
function bindEvents(controller: WebViewerController) {
document.getElementById("pdf-page-up")?.addEventListener("click", () => {
controller.pageUp();
})
document.getElementById("pdf-page-down")?.addEventListener("click", () => {
controller.pageDown();
})
}
This example showcases a simplified approach to integrating a PDF viewer compared to using an iframe.

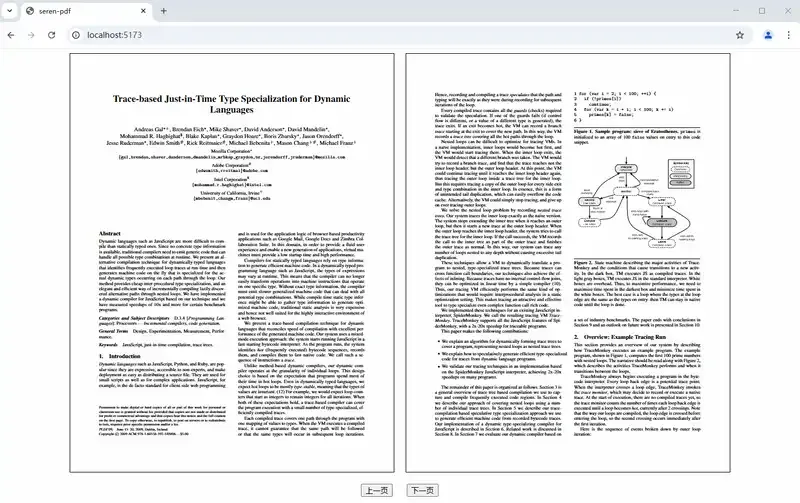

Here is an animation demonstrating the first working example:
Addressing Code Quality Issues
The refactoring process involved significant improvements to code quality. This included:
- Replacing JavaScript with TypeScript
- Eliminating hard-coded values
- Improving function parameter clarity
- Converting process-oriented code to object-oriented code
Here's a before-and-after comparison illustrating the improved code clarity and maintainability:
Before Refactor (JavaScript):
handler.on("GetPage", function (data) {
return pdfManager.getPage(data.pageIndex).then(function (page) {
return Promise.all([
pdfManager.ensure(page, "rotate"),
pdfManager.ensure(page, "ref"),
pdfManager.ensure(page, "userUnit"),
pdfManager.ensure(page, "view"),
]).then(function ([rotate, ref, userUnit, view]) {
return {
rotate,
ref,
refStr: ref?.toString() ?? null,
userUnit,
view,
};
});
});
});
After Refactor (TypeScript):
handler.onGetPage(async data => {
return pdfManager!.getPage(data.pageIndex).then(async page => {
return Promise.all([
pdfManager!.ensure(page, page => page.rotate),
pdfManager!.ensure(page, page => page.ref),
pdfManager!.ensure(page, page => page.userUnit),
pdfManager!.ensure(page, page => page.view),
]).then(([rotate, ref, userUnit, view]) => {
return { rotate, ref, refStr: ref?.toString() ?? null, userUnit, view };
});
});
});
Conclusion and Next Steps
This 100-day project successfully refactored a large JavaScript library, resulting in a more maintainable, extensible, and developer-friendly codebase. The next steps include comprehensive testing and the completion of API and callback event rewriting. The project code is hosted on GitHub: https://github.com/xingshen24/seren-pdf
To start using the library, clone the repository, run pnpm recursive install, navigate to the packages-private/seren-viewer-develop/ directory, and run pnpm run dev.
